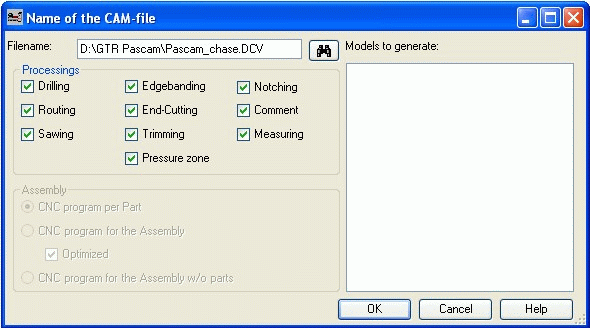

NC program generation
When all
CNC manufacturing features are entered in the SOLIDWORKS®
model at the end of the design process, the corresponding CNC
program can be generated on a fingertip.
At the moment there are 3 powerful postprocessors available to
generate the machine specific NC code:
- a MPR interface for all machines of the Homag group (Homag and Weeke)
- a DCV interface of the company GTR for the control of all common woodworking CNC machines, based on a technology database.
- a AlphaCAM interface for the control of other CNC machines, especially with 5-axis
Any changes in the model geometry are automatically transferred to the CNC program at the push of a button.
To get a higher flexibility at the NC program generation, complete machining strategy features - i.e. the drilling features - can be temporarily excluded and suppressed from the generation. It also can be determined, which geometry features - in addition to the necessary ones for the machining - should be transmitted to the postprocessor.
 |
Current news
Current version 2 SP12 now available!
PASCAM Bea is only available in combination with PASCAM WoodWorks.
With PASCAM Bea you can add manual manufacturing information to your SOLIDWORKS model, generate automatically feature-based NC programs for woodworking CNC machines and create program parameters for complex throughput machines.
Detailed information:
